Model Number: | ZLP630 |
Platform length: | 6meters |
Motor power: | 1.5kw*2 220V/380V/415V |
Material: | Steel Painted/Galvanized/Aluminum |
Counter weight: | Cement block, Iron cast |
Working height: | 100m |
Place of Origin: | China |
Min.Order Quantity: | 1 set |
Delivery Time: | 7-14days after order confirmed |

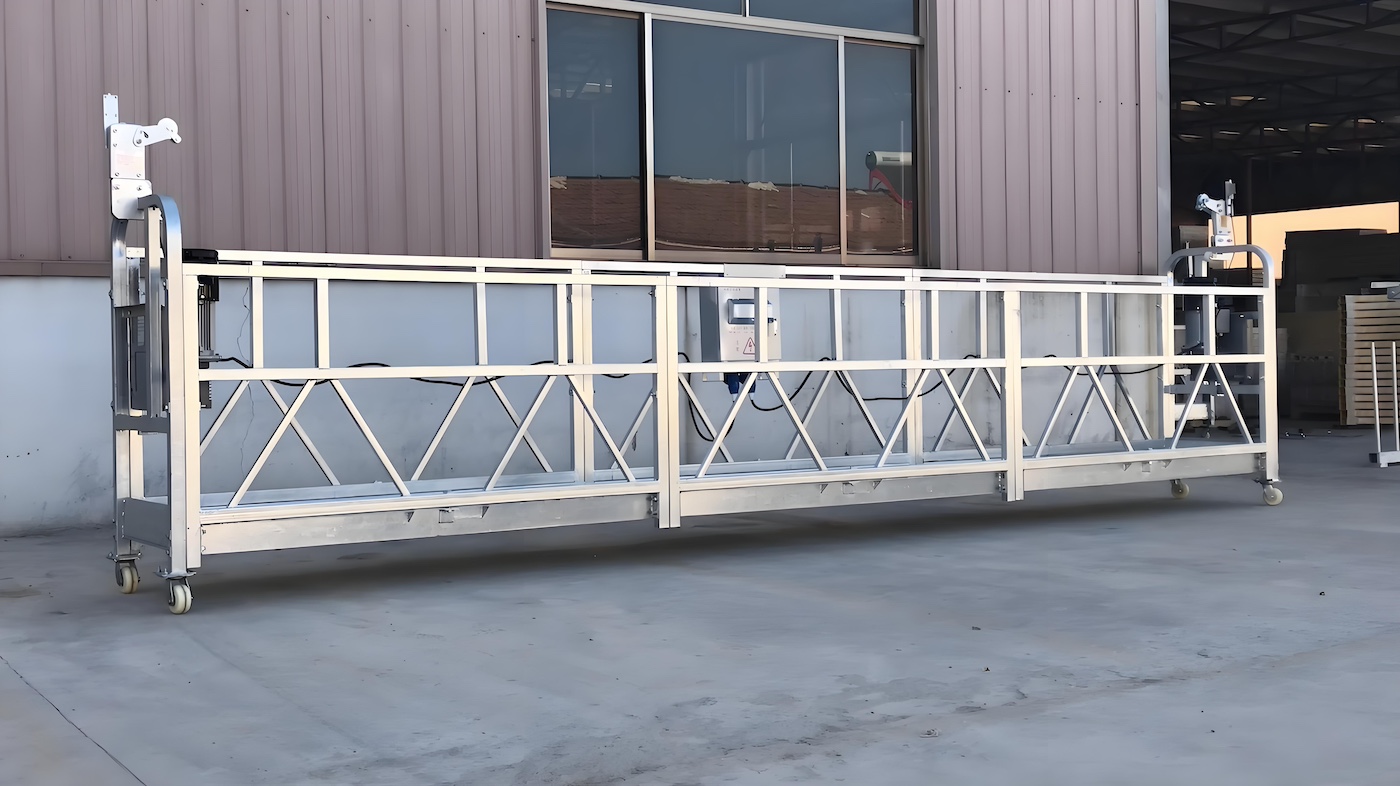

Suspended platform is a new type of high-altitude work equipment that can replace traditional scaffolding, reduce labor intensity, improve work efficiency, and be reused. At present, the use of hanging baskets has gradually formed a trend and has been widely recognized in high-altitude operations such as exterior wall construction, curtain wall installation, insulation construction, and maintenance and cleaning of exterior walls in high-rise and multi story buildings. It can be used for the operation of large tanks, bridges, and dams. The suspended platform operation is simple and flexible, easy to move, convenient and practical, safe and reliable, and can be used without scaffolding, greatly reducing construction costs. The construction cost is only 30% of traditional scaffolding, and the work efficiency is greatly improved.
Model | ZLP500 | ZLP630 | ZLP800 | ZLP1000 |
Rated Capacity | 500KG | 630KG | 800KG | 1000KG |
Rated Lifting Speed | 9-11m/min | 9-11m/min | 8-10m/min | 8-10m/min |
Length of Platform | 5m | 6m | 7.5m | 7.5m |
Wire Rope Diameter | 8.3mm | 8.3mm | 8.6mm | 8.6/9.1mm |
Traction Hoist Type | LTD5.0 | LTD6.3 | LTD8.0 | LTD10 |
Hoist Rated Lifting Force | 5KN | 6.3KN | 8KN | 9.8KN |
Motor Power | 1.5KW | 1.5KW | 1.8KW | 2.2KW |
Motor Voltage | 380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phase | |||
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Rotation Speed | 1420rpm | 1420rpm | 1420rpm | 1420rpm |
Brake Torque | 15Nm | |||
Safety Lock Type | LSG30 | |||
Permission Force of Impact | 30KN | |||
Locking Cable Distance | <100mm | |||
Locking Cable | 3°~8° | |||
Suspension Mechanism Length | 1.3~1.7m | |||
Adjustable Height of the Beam | 1.1~1.8m | |||
Weight of platform Steel/Aluminum | 1520/1460kg | 1710/1630kg | 1950/1830kg | 2340/2240kg |
Weight of Suspension Mechanism | 310kg | |||
Counter Weight | 750kg | 900kg | 1000kg | 1300kg |
2. Easy to disassemble, assemble operate and maintain.
3. With a wide range of accessories Suspended Platform cradle can be adapted, as standard to many site configurations.
4. Composed of 70% aluminum, they are both lightweight and corrosion resistant.
5. Easy to transport where each platform is packed in its own box.
6. Works and fits tanks, bridge piers or towers.
7. Anti-slipping aluminum base platform.
8. Cradle is provided with soft non-marking facade rollers, to protect facade from any damages during operation manual
lowering in case of power or winch failure.
9. Has electrical of IP 54 protection.
10. Cradle is equipped with anti-tilt and anti-fall arrest safety brake devices.
11. Castor wheels for transportation.
