Wire rope for suspended platform

 Steel wire rope used in hoists for the equipment is special galvanized steel rope, The end of the steel wire rope fixed on the suspension mechanism is fixed with thimble secured by pressing a high grade aluminum alloy ferrule under a high pressure in dies and tested having a proof load of 50 kN in the tensile test machine with 1000 kN capacity. The steel wire rope for suspended platform is the main component to withstand the load of the basket, so there are strict requirements for the wire rope used. The steel lifting cradle for suspended platform adopts the steel wire rope for the galvanized hanging basket, which has the characteristics of high strength and good rust prevention performance.
公称直径
Nominal Diameter
公称抗拉强度 Nominal Tensile Strength, MPa 参考重量 Approximate Weight
1870 1960 2060 2160 2260 2360
mm 最小破断拉力 Min,Breaking Load, kN kg/100m
8 41 43 45.2 47.4 49.6 51.8 24.3
8.3 44.2 46.3 48.7 51 53.4 55.8 26.4
8.6 47.1 49.3 51.9 54.4 56.9 59.4 28.3
9 51.3 53.8 56.5 59.3 62 64.8 32
9.5 57.3 60.1 63.1 66.2 69.3 72.3 35.5
10 63.6 66.7 70.1 73.5 76.9 80.3 39
Product Description


特点 Characteristics:
定尺钢丝生产 Made of length determined steel wires
线接触结构、直径公差小、可挠性强 Parallel lay structure, small diameter tolerance, flexible.




表面状态 Surface Coating:
热镀锌 Hot galvanized

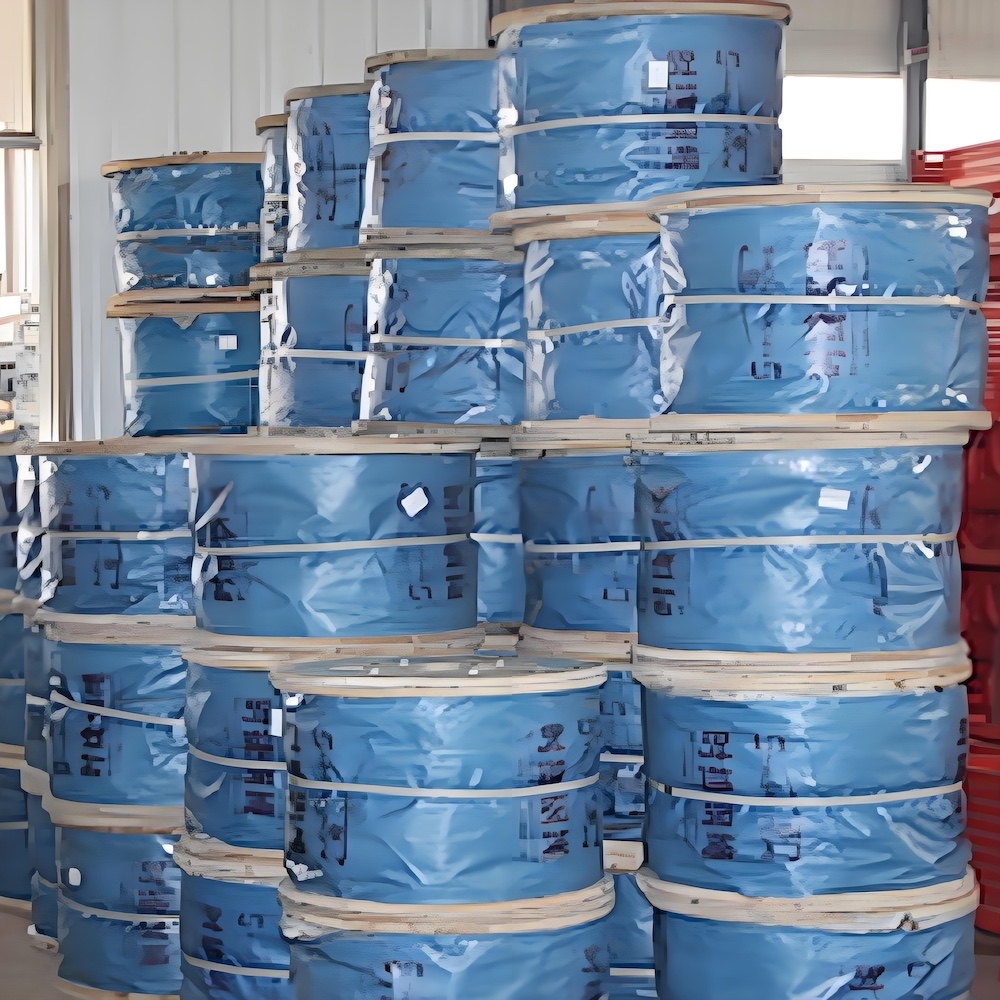

包装方式 Packing type:
工字轮或脱件 Spool or coil


标准 Standard:
按YB/T 4575,也可根据顾客的技术要求生产
In accordance with YB/T 4575, as well as customers'requests


使用注意事项 Remarks during use and handling:
运输过程中应该轻提轻放,防止撞击损坏外包装,防潮并严禁淋雨,钢丝绳应储存在干燥通风的室内
During transportation, handle with care,avoid bumping and damaging the outer packing materials.Moisture and rain prohibited. Steel wire ropes must be stored in dry and well ventilated indoors.
使用过程中应采用工字轮退转放线并注意放线方向,避免产生附加应力
Pay attention to directions of pay-off and take-up to avoid generating additional stress.
加工焊头过程中,应使钢丝绳处于松弛无应力状态下进行
During the process of welding, Ropes must be under relaxation and stressless conditions.
现场使用中,应注意钢丝绳穿行方向及尾部自然悬垂,避免产生附加应力及钢丝绳弯折
At work site, pay attention to the threading direction and the ends natural overhang to avoid additional stress and curving of the wire ropes.
