Steel painted / cradle Suspended platform Construction lift equipment/Window Cleaning Suspended Platform ZLP-500

Model	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Capacity	500KG	630KG	800KG	1000KG
Rated Lifting Speed	9-11m/min	9-11m/min	8-10m/min	8-10m/min
Length of Platform	5m	6m	7.5m	7.5m
Wire Rope Diameter	8.3mm	8.3mm	8.6mm	8.6/9.1mm
Traction Hoist Type	LTD5.0	LTD6.3	LTD8.0	LTD10
Hoist Rated Lifting Force	5KN	6.3KN	8KN	9.8KN
Motor Power	1.5KW	1.5KW	1.8KW	2.2KW
Motor Voltage	380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phase
Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Rotation Speed	1420rpm	1420rpm	1420rpm	1420rpm
Brake Torque	15Nm
Safety Lock Type	LSG30
Permission Force of Impact	30KN
Locking Cable Distance	<100mm
Locking Cable	3°~8°
Suspension Mechanism Length	1.3~1.7m
Adjustable Height of the Beam	1.1~1.8m
Weight of platform Steel/Aluminum	1520/1460kg	1710/1630kg	1950/1830kg	2340/2240kg
Weight of Suspension Mechanism	310kg
Counter Weight	750kg	900kg	1000kg	1300kg

Categories:ZLP500 Suspended Platform

Add To Basket Get A Quote

Product DescriptionProductAccessoryPackageWorkshopProjectParameter and Feature

Suspended platform is a new type of high-altitude work equipment that can replace traditional scaffolding, reduce labor intensity, improve work efficiency, and be reused. At present, the use of hanging baskets has gradually formed a trend and has been widely recognized in high-altitude operations such as exterior wall construction, curtain wall installation, insulation construction, and maintenance and cleaning of exterior walls in high-rise and multi story buildings. It can be used for the operation of large tanks, bridges, and dams. The suspended platform operation is simple and flexible, easy to move, convenient and practical, safe and reliable, and can be used without scaffolding, greatly reducing construction costs. The construction cost is only 30% of traditional scaffolding, and the work efficiency is greatly improved.

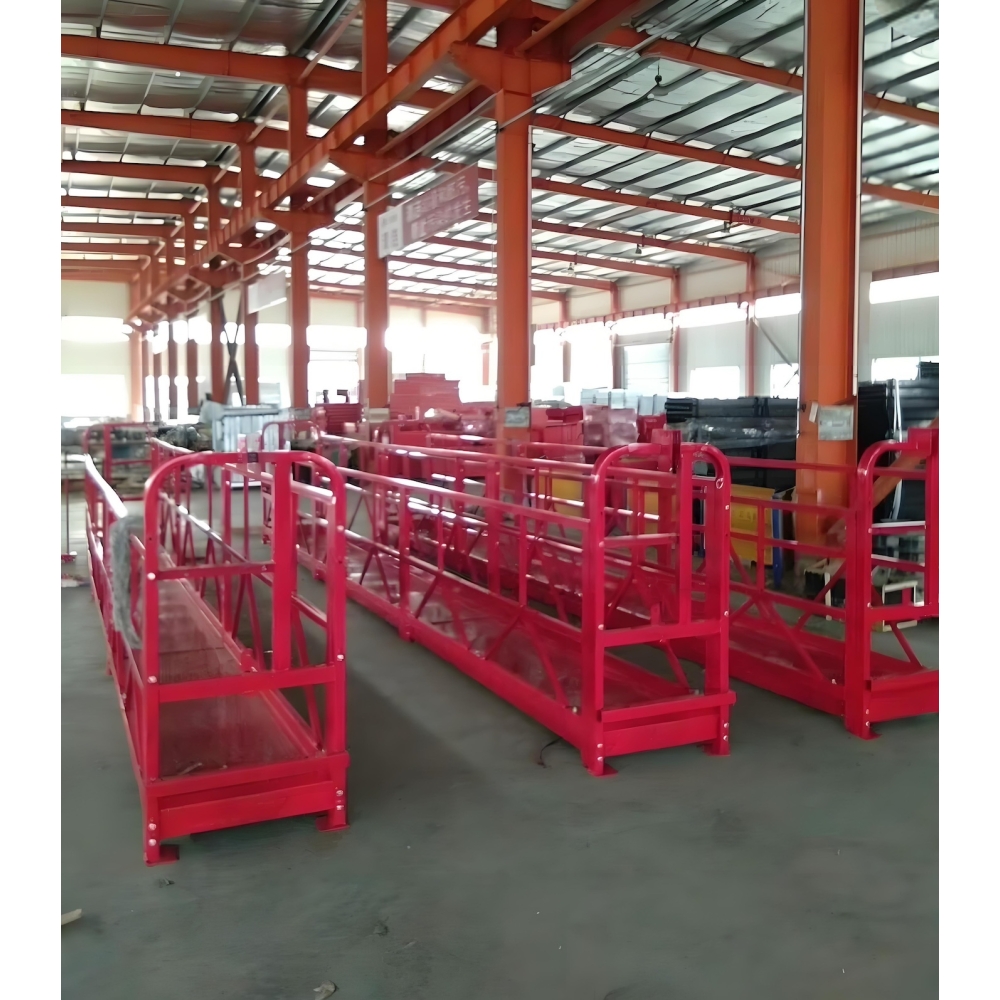

1. Working Platform: Steel Q235 + Painting; Q235 + Galvanised; Aluminum Alloy + Painting;
1.1 Working Platform is the workplace at heights for the workers.
1.2 Size of platform can be adjusted from 1.0m, 1.5m, 2m, 2.5 meter or 3m etc depending upon the needs of your building
1.3 With Bottom Wheel fitted underneath, the platform is easy to move.
2. Suspension Mechanism: Steel Q235 + Painting; Q235 + Galvanised;
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.
3. Components:
LTD5.0 Hoist: 1.5kw, 2 sets;
LSG30 Safety Lock: 2 sets;
Electric Cabine: 1 set;
Steel Rope: 4pcs, 100m/pcs; D=8.3mm;
Electric Cabinet: 1pcs, 100m/pcs, 3x2.5+2x1.5mm sq;
Safety Rope: 1pcs; 100m/pcs;
Counterweight (Optional): 40pcs, 25kg/pcs.

1. The most stable and secure while moving and working.

2. Easy to disassemble, assemble operate and maintain.

3. With a wide range of accessories Suspended Platform cradle can be adapted, as standard to many site configurations.

4. Composed of 70% aluminum, they are both lightweight and corrosion resistant.

5. Easy to transport where each platform is packed in its own box.

6. Works and fits tanks, bridge piers or towers.

7. Anti-slipping aluminum base platform.

8. Cradle is provided with soft non-marking facade rollers, to protect facade from any damages during operation manual
lowering in case of power or winch failure.

9. Has electrical of IP 54 protection.

10. Cradle is equipped with anti-tilt and anti-fall arrest safety brake devices.

11. Castor wheels for transportation.
